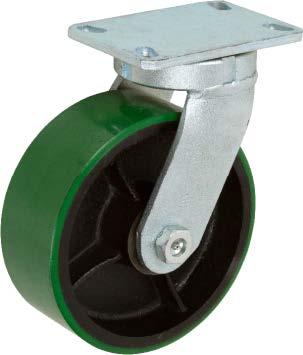

Stromberg STP7200 KPL Series Heavy Duty Kingpinless Swivel Caster

STP7200 KPL Series Heavy Duty Kingpinless Swivel Casters

Supplier: Stromberg

FOB: West Coast Warehouse

Ideal for platform trucks and freight terminal dollies, air cargo and ground support, tow line and shock load applications and military equipment.

  • Finish: Bright zinc plating.
  • Top plate: 5/16" steel plate.
  • Swivel: One row of 1/2" ball bearing mounted in a heat treated precision machined raceway.
  • Fork spacing: 3-1/2".
  • Leg thickness: 5/16" steel plate.
  • Grease fittings: Zerk in swivel section.
  • PSL-notched: All swivel rigs notched for optional 4-position.
  • Axle: 3/4" diameter axle with lock nut.
  • Model Info

40 models for STP7200 KPL Series Heavy Duty Kingpinless Swivel Casters

  • Prices subject to change without notice

Products without prices are not available for purchase through our shopping cart.

If you are interested in these products, add them to your quote list by clicking the red button below.

Model No. Fastening Type Fastening Size Overall Height Wheel Diameter Tread Width Wheel Type Wheel Bearing Load Capacity Swivel Radius Price Ea. Qty
STP7260-KPL-01-PCI Top Plate 4-1/4" x 6-1/4" x 5/16" 7-1/2" 6" 3" Polyurethane / Cast Iron Roller 2000 lbs. 4-3/8" $128.00
STP7260-KPL-01-PHN Top Plate 4-1/4" x 6-1/4" x 5/16" 7-1/2" 6" 3" Phenolic Roller 2000 lbs. 4-3/8" $120.00
STP7260-KPL-01-RCI Top Plate 4-1/4" x 6-1/4" x 5/16" 7-1/2" 6" 3" Rubber / Cast Iron Roller 750 lbs. 4-3/8" $122.00
STP7260-KPL-01-STL Top Plate 4-1/4" x 6-1/4" x 5/16" 7-1/2" 6" 3" Steel Roller 2500 lbs. 4-3/8" $125.00
STP7260-KPL-01-SDI Top Plate 4-1/4" x 6-1/4" x 5/16" 7-1/2" 6" 3" Ductile Iron Roller 4800 lbs. 4-3/8" $146.00
STP7260-KPL-02-PCI Top Plate 5-1/4" x 7-1/4" x 5/16" 7-1/2" 6" 3" Polyurethane / Cast Iron Roller 2000 lbs. 4-3/8" $128.00
STP7260-KPL-02-PHN Top Plate 5-1/4" x 7-1/4" x 5/16" 7-1/2" 6" 3" Phenolic Roller 2000 lbs. 4-3/8" $120.00
STP7260-KPL-02-RCI Top Plate 5-1/4" x 7-1/4" x 5/16" 7-1/2" 6" 3" Rubber / Cast Iron Roller 750 lbs. 4-3/8" $122.00
STP7260-KPL-02-STL Top Plate 5-1/4" x 7-1/4" x 5/16" 7-1/2" 6" 3" Steel Roller 2500 lbs .4-3/8" $125.00
STP7260-KPL-02-SDI Top Plate 5-1/4" x 7-1/4" x 5/16" 7-1/2" 6" 3" Ductile Iron Roller 4800 lbs. 4-3/8" $146.00
STP7280-KPL-01-PCI Top Plate 4-1/4" x 6-1/4" x 5/16" 10-1/8" 8" 3" Polyurethane / Cast Iron Roller 2500 lbs. 6-1/16" $136.00
STP7280-KPL-01-PHN Top Plate 4-1/4" x 6-1/4" x 5/16" 10-1/8" 8" 3" Phenolic Roller 2500 lbs. 6-1/16" $123.00
STP7280-KPL-01-RCI Top Plate 4-1/4" x 6-1/4" x 5/16" 10-1/8" 8" 3" Rubber / Cast Iron Roller 900 lbs. 6-1/16" $125.00
STP7280-KPL-01-STL Top Plate 4-1/4" x 6-1/4" x 5/16" 10-1/8" 8" 3" Steel Roller 2500 lbs. 6-1/16" $129.00
STP7280-KPL-01-SDI Top Plate 4-1/4" x 6-1/4" x 5/16" 10-1/8" 8" 3" Ductile Iron Roller 5400 lbs. 6-1/16" $161.00
STP7280-KPL-02-PCI Top Plate 5-1/4" x 7-1/4" x 5/16" 10-1/8" 8" 3" Polurethane / Cast Iron Roller 2500 lbs. 6-1/16" $148.00
STP7280-KPL-02-PHN Top Plate 5-1/4" x 7-1/4" x 5/16" 10-1/8" 8" 3" Phenolic Roller 2500 lbs. 6-1/16" $123.00
STP7280-KPL-02-RCI Top Plate 5-1/4" x 7-1/4" x 5/16" 10-1/8" 8" 3" Rubber / Cast Iron Roller 900 lbs. 6-1/16" $125.00
STP7280-KPL-02-STL Top Plate 5-1/4" x 7-1/4" x 5/16" 10-1/8" 8" 3" Steel Roller 2500 lbs. 6-1/16" $132.00
STP7280-KPL-02-SDI Top Plate 5-1/4" x 7-1/4" x 5/16" 10-1/8" 8" 3" Ductile Iron Roller 5400 lbs. 6-1/16" $161.00
STP7210-KPL-01-PCI Top Plate 4-1/4" x 6-1/4" x 5/16" 11-1/2" 10" 3" Polyurethane / Cast Iron Roller 3000 lbs. 7-1/4" $148.00
STP7210-KPL-01-PHN Top Plate 4-1/4" x 6-1/4" x 5/16" 11-1/2" 10" 3" Phenolic Roller 2900 lbs. 7-1/4" $136.00
STP7210-KPL-01-RCI Top Plate 4-1/4" x 6-1/4" x 5/16" 11-1/2" 10" 3" Rubber / Cast Iron Roller 1000 lbs. 7-1/4" $138.00
STP7210-KPL-01-STL Top Plate 4-1/4" x 6-1/4" x 5/16" 11-1/2" 10" 3" Steel Roller 2500 lbs. 7-1/4" $148.00
STP7210-KPL-01-SDI Top Plate 4-1/4" x 6-1/4" x 5/16" 11-1/2" 10" 3" Ductile Iron Roller 5400 lbs. 7-1/4" $172.00
STP7210-KPL-02-PCI Top Plate 5-1/4" x 7-1/4" x 5/16" 11-1/2" 10" 3" Polyurethane / Cast Iron Roller 3000 lbs. 7-1/4" $148.00
STP7210-KPL-02-PHN Top Plate 5-1/4" x 7-1/4" x 5/16" 11-1/2" 10" 3" Phenolic Roller 2900 lbs. 7-1/4" $136.00
STP7210-KPL-02-RCI Top Plate 5-1/4" x 7-1/4" x 5/16" 11-1/2" 10" 3" Rubber / Cast Iron Roller 1000 lbs. 7-1/4" $138.00
STP7210-KPL-02-STL Top Plate 5-1/4" x 7-1/4" x 5/16" 11-1/2" 10" 3" Steel Roller 2500 lbs. 7-1/4" $148.00
STP7210-KPL-02-SDI Top Plate 5-1/4" x 7-1/4" x 5/16" 11-1/2" 10" 3" Ductile Iron Roller 5400 lbs. 7-1/4" $172.00
STP7212-KPL-01-PCI Top Plate 4-1/4" x 6-1/4" x 5/16" 13-1/2" 12" 3" Polyurethane / Cast Iron Roller 3200 lbs. 8-11/16" $182.00
STP7212-KPL-01-PHN Top Plate 4-1/4" x 6-1/4" x 5/16" 13-1/2" 12" 3" Phenolic Roller 3500 lbs. 8-11/16" $169.00
STP7212-KPL-01-RCI Top Plate 4-1/4" x 6-1/4" x 5/16" 13-1/2" 12" 3" Rubber / Cast Iron Roller 1200 lbs. 8-11/16" $167.00
STP7212-KPL-01-STL Top Plate 4-1/4" x 6-1/4" x 5/16" 13-1/2" 12" 3" Steel Roller 2500 lbs. 8-11/16" $180.00
STP7212-KPL-01-SDI Top Plate 4-1/4" x 6-1/4" x 5/16" 13-1/2" 12" 3" Ductile Iron Roller 5400 lbs. 8-11/16" $191.00
STP7212-KPL-02-PCI Top Plate 5-1/4" x 7-1/4" x 5/16" 13-1/2" 12" 3" Polyurethane / Cast Iron Roller 3200 lbs. 8-11/16" $182.00
STP7212-KPL-02-PHN Top Plate 5-1/4" x 7-1/4" x 5/16" 13-1/2" 12" 3" Phenolic Roller 3500 lbs. 8-11/16" $169.00
STP7212-KPL-02-RCI Top Plate 5-1/4" x 7-1/4" x 5/16" 13-1/2" 12" 3" Rubber / Cast Iron Roller 1200 lbs. 8-11/16" $167.00
STP7212-KPL-02-STL Top Plate 5-1/4" x 7-1/4" x 5/16" 13-1/2" 12" 3" Steel Roller 2500 lbs. 8-11/16" $180.00
STP7212-KPL-02-SDI Top Plate 5-1/4" x 7-1/4" x 5/16" 13-1/2" 12" 3" Ductile Iron Roller 5400 lbs. 8-11/16" $191.00
All items in RED ship express from our warehouses.
